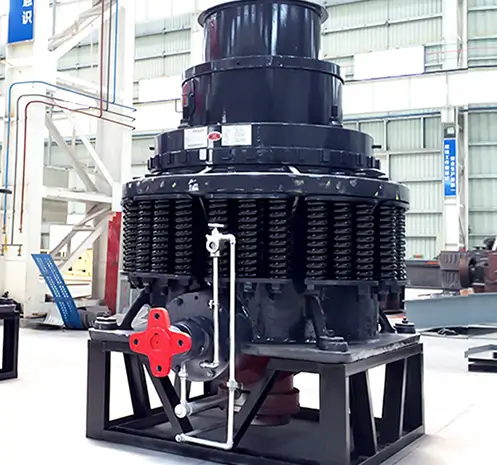

Spring Cone Crusher

The spring cone crusher is a new type of high-efficiency crusher independently developed and designed by Bebon Group, drawing on years of experience and extensively absorbing advanced crusher technologies from the United States and Germany. This cone crusher integrates mechanical, hydraulic, electrical, automation, and intelligent control technologies, representing the world's most advanced crusher technology.

Feed size: 40-350mm
Capacity: 12-1000t/h
Suitable for: granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.
High Crushing Performance
Patented Structure Design
Long Service Lifespan
Diverse Crushing Chambers

We Always Focus On Optimizing The User Experience Of Our Products

1. High Crushing Performance

Delivers strong crushing force, high working efficiency, and excellent overall processing capacity.

2. Patented Structure Design

Features a newly upgraded design and comes with independent technical patents.

3. Long Service Life

Reasonable parts selection and optimized structure ensure longer service life.

4. Diverse Crushing Chambers

Various chamber types available to satisfy different production requirements.

Working Principle

Material is drawn into the crushing chamber between a fixed concave bowl and a movable crushing head (or crushing arm). As the crushing arm rotates around the concave bowl, it reduces the particle size of the material through compression. The crushed material is then discharged from the outlet at the bottom of the crusher. If uncrushable material enters the crushing chamber, a spring system can temporarily displace the crushing arm to prevent damage to the crusher. The particle size of the crushed material can be adjusted by changing the distance between the crushing arm and the concave bowl.

Product Structure

The spring cone crusher consists of a main frame, drive shaft, eccentric bushing, cup bearing, crushing cone, adjusting device, adjusting sleeve, spring, etc.

CASES

Kazakhstan Molybdenum Ore Flotation Plant

Project Overview The project is dedicated to the purification and upgrading of molybdenum ore. It removes...

Ghana Gold Ore Flotation Plant

Project Overview This production line is used for fine flotation and recovery of fine-grained gold ore....

Southeast Asia Lead-Zinc Ore Processing Plant

Project Overview The project targets the separation and enrichment of complex lead-zinc symbiotic ore....

Chile Copper Ore Flotation Plant

Project Overview This flotation production line is designed for impurity removal and high-grade concentration...

Choose The Best Match for You

Spring Cone Crusher

PYB Standard Type

Model	Diameter of Crushing Cone (mm)	Feed Opening (mm)	Max. Feed Size (mm)	Range of Discharge Opening (mm)	Capacity (t/h)	Power (kW)	Eccentric Shaft Speed (r/min)	Weight Including Motor (t)	Overall Size (L×W×H) (mm)
PYB600	Φ600	75	65	12-15	40	30	356	5	2234×1370×1675
PYB900	Φ900	135	115	15-50	50-90	55	333	11.2	2692×1640×2350
PYB1200	Φ1200	170	145	20-50	110-168	110	300	24.7	2790×1878×2844
PYB1750	Φ1750	250	215	25-50	280-480	160	245	50.3	3910×2894×3809
PYB2200	Φ2200	350	300	30-60	590-1000	280/260	220	80	4622×3302×4470

PYD Short Head Type

Model	Diameter of Crushing Cone (mm)	Feed Opening (mm)	Max. Feed Size (mm)	Range of Discharge Opening (mm)	Capacity (t/h)	Power (kW)	Eccentric Shaft Speed (r/min)	Weight Including Motor (t)	Overall Size (L×W×H) (mm)
PYD600	Φ600	40	35	3-13	12-23	30	356	5.1	2234×1370×1675
PYD900	Φ900	50	40	3-13	15-50	55	333	11.3	2692×1640×2350
PYD1200	Φ1200	60	50	3-15	18-105	110	300	25.3	2790×1878×2844
PYD1750	Φ1750	100	85	5-15	75-230	160	245	50.2	3910×2894×3809
PYD2200	Φ2200	130	100	5-16	120-340	280/260	220	81.4	4622×3302×4470
